Description

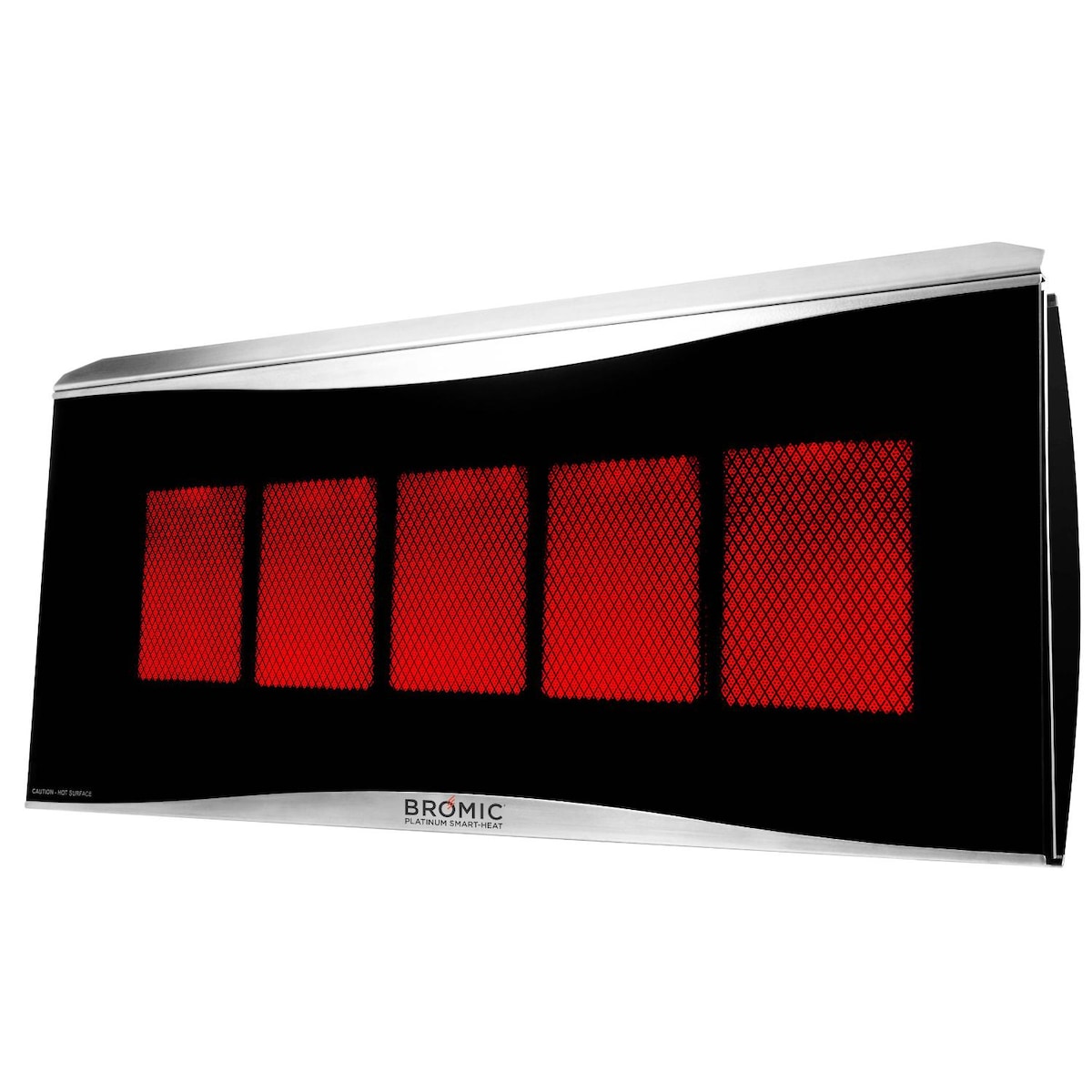

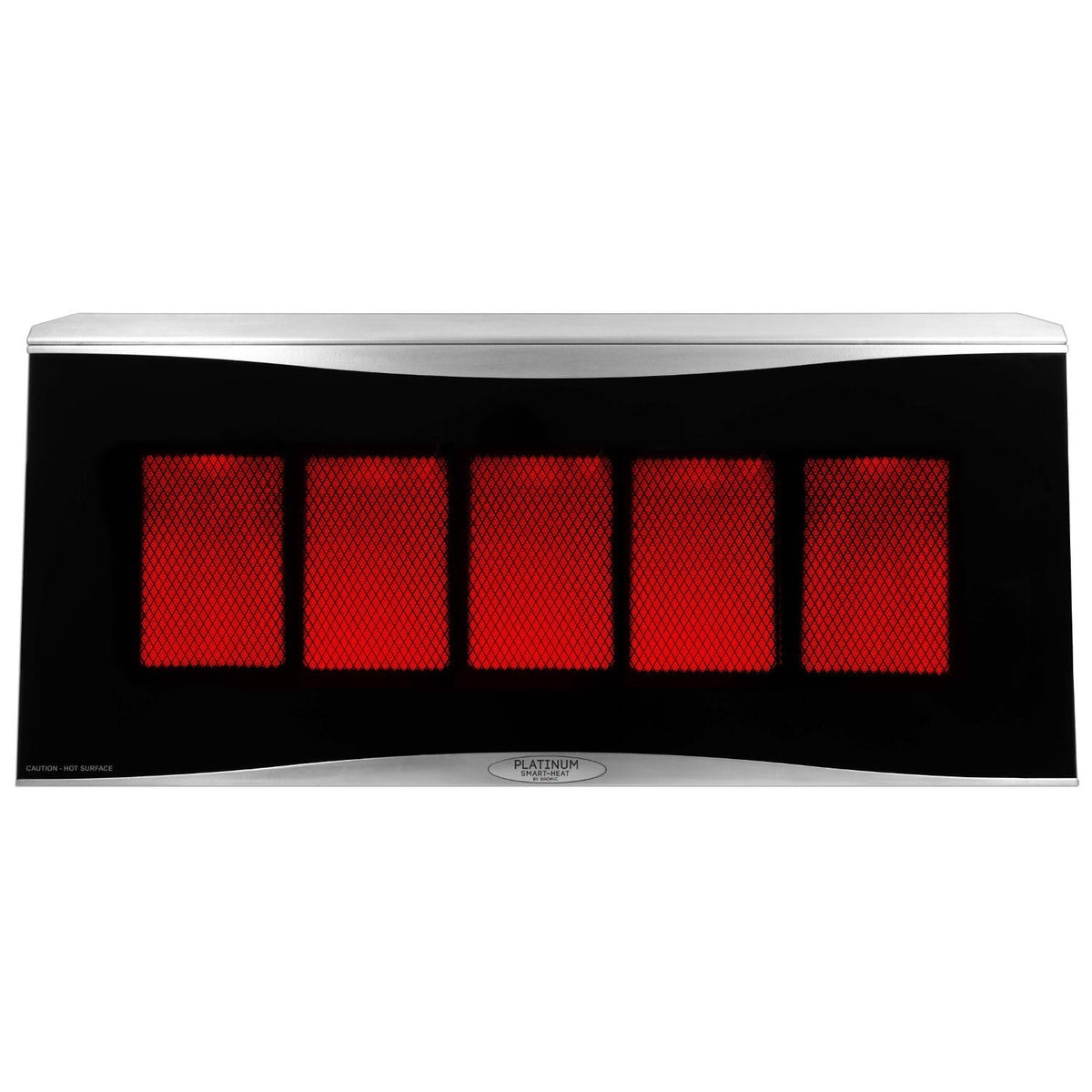

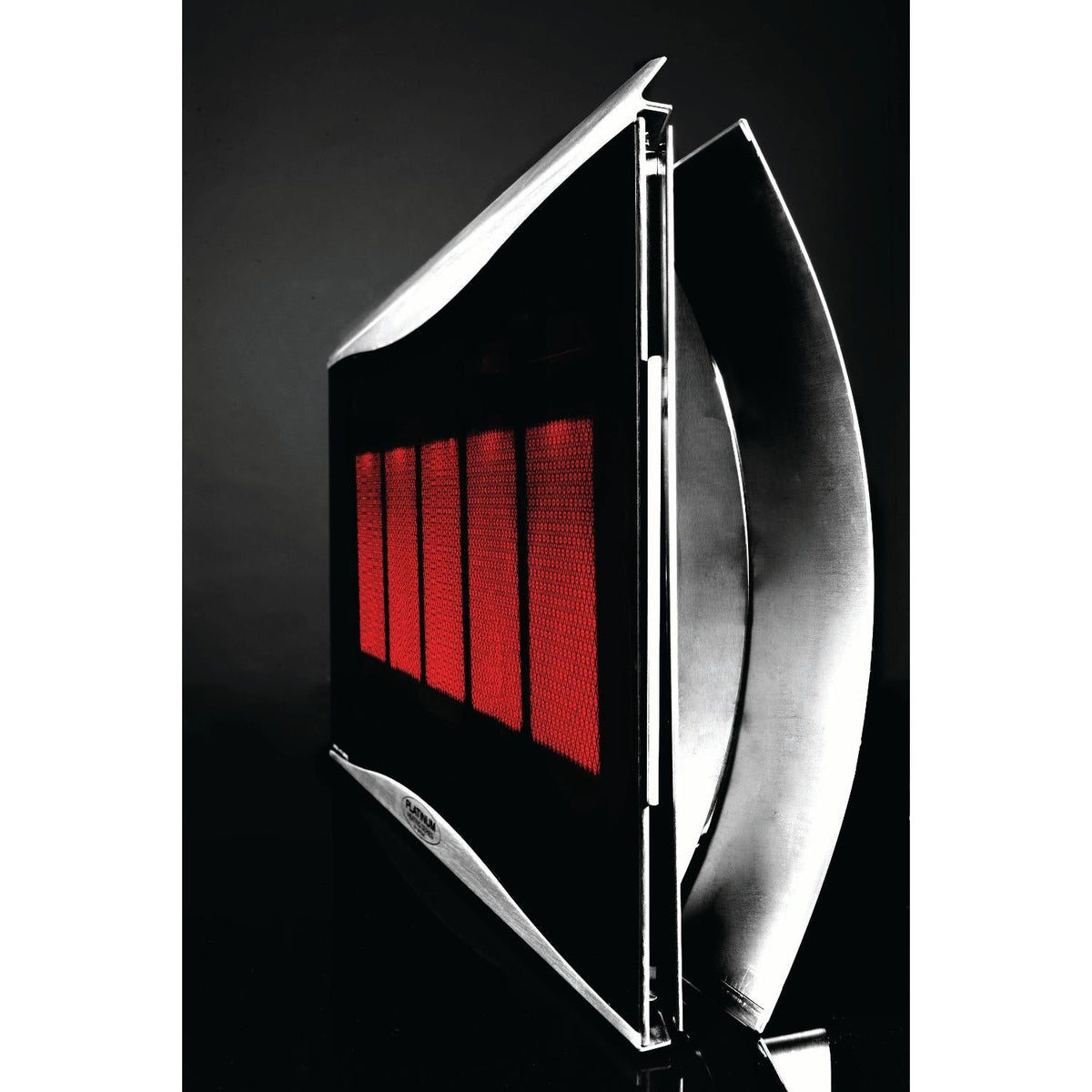

The Bromic Platinum Smart-Heat 29-Inch 500-Series 39,800 BTU Gas Heater is the most powerful Platinum gas heater, pairing Bromic's signature ceramic-glass screen with a fully sealed stainless steel body. It warms outdoor areas of up to 215 square feet with directional radiant heat and a subtle red glow, and is available in natural gas and propane.
Reliable in the Wind
Bromic's patented wind-resistance technology keeps the heater working in winds of up to 12 mph. The patented direct ignition system lights instantly with no pilot light, and automatic re-ignition with a flame-failure safety shut-off keeps operation safe and hands-off. Slow-release ceramic burners deliver efficient, clean combustion.
Bromic's patented wind-resistance technology keeps the heater working in winds of up to 12 mph. The patented direct ignition system lights instantly with no pilot light, and automatic re-ignition with a flame-failure safety shut-off keeps operation safe and hands-off. Slow-release ceramic burners deliver efficient, clean combustion.
Installation and Controls

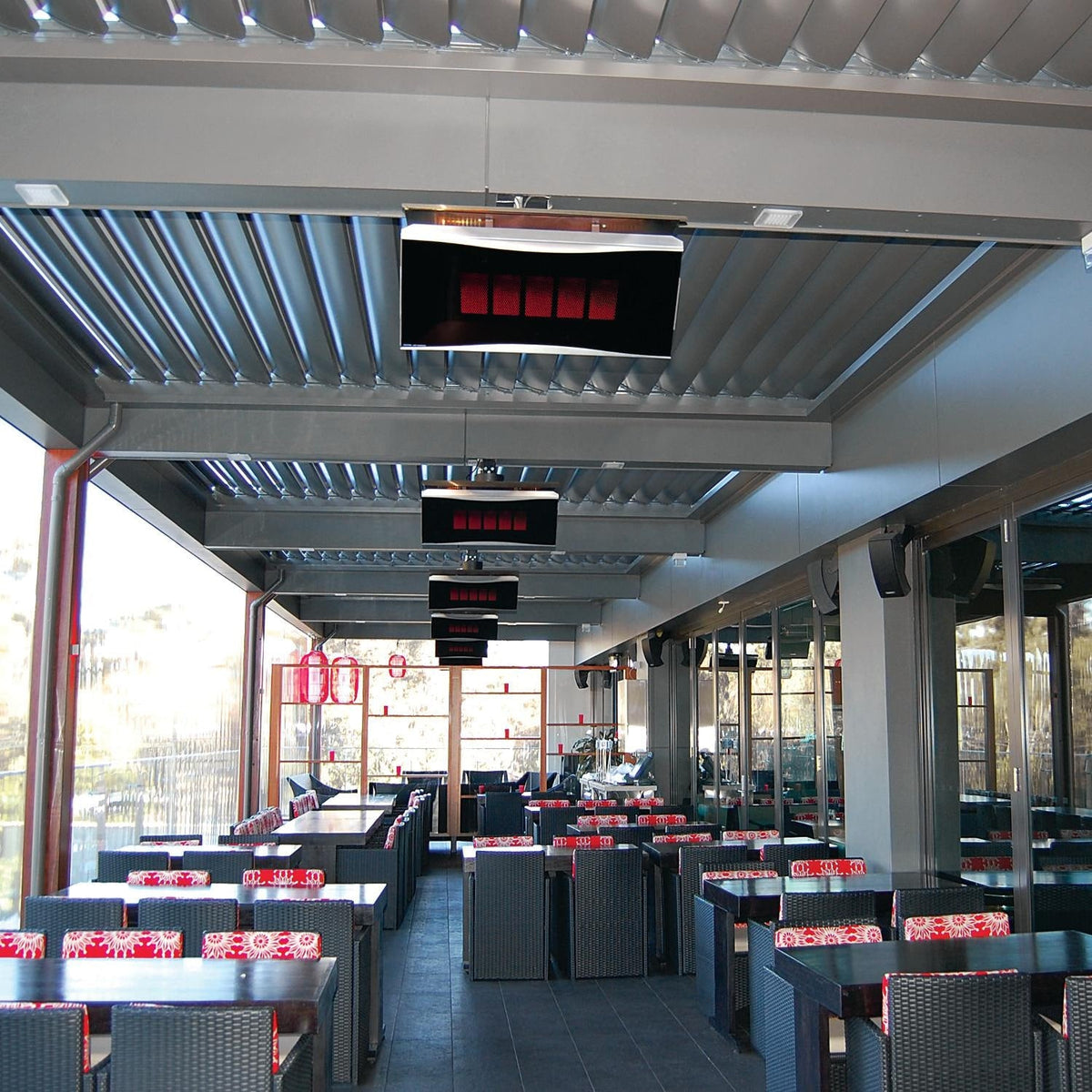

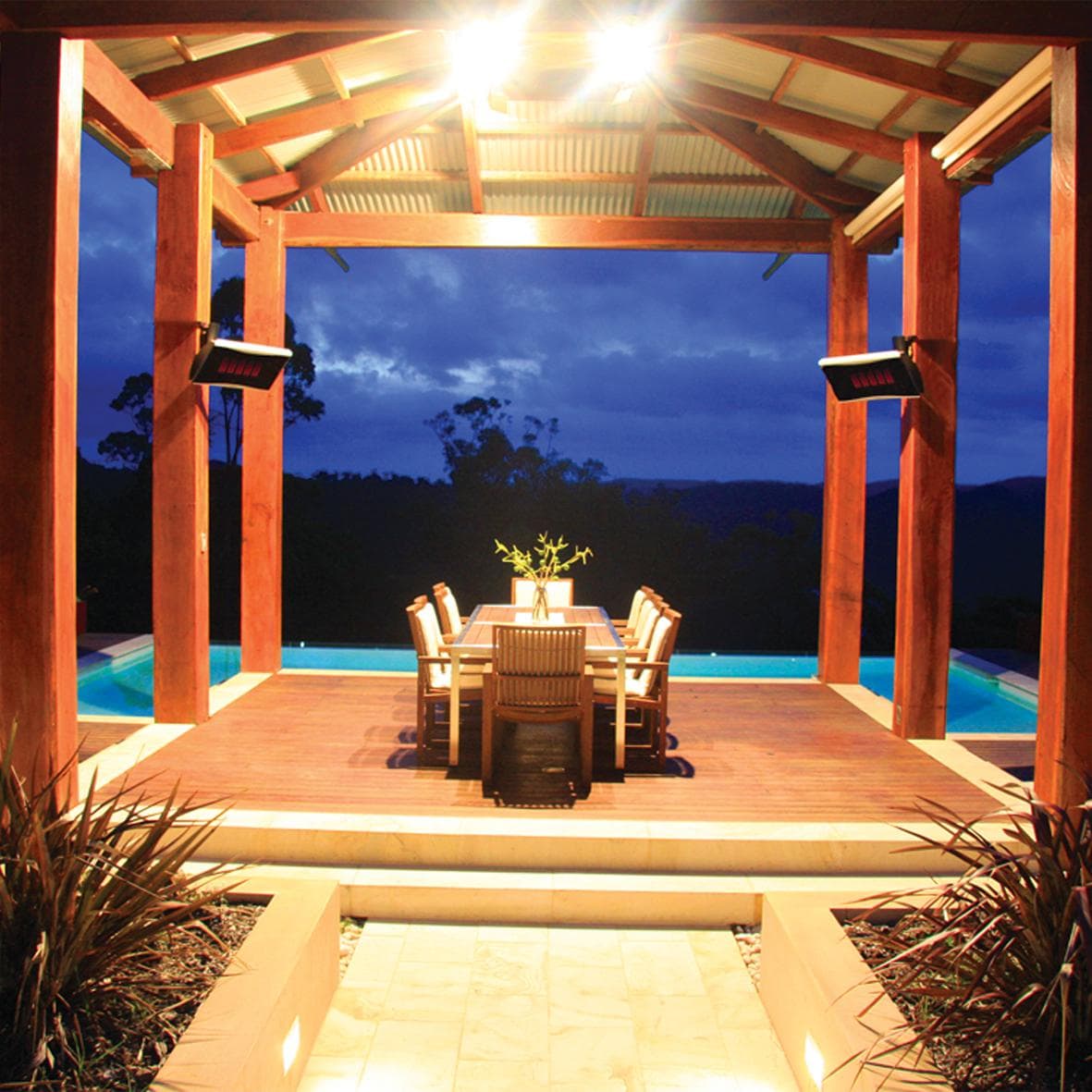

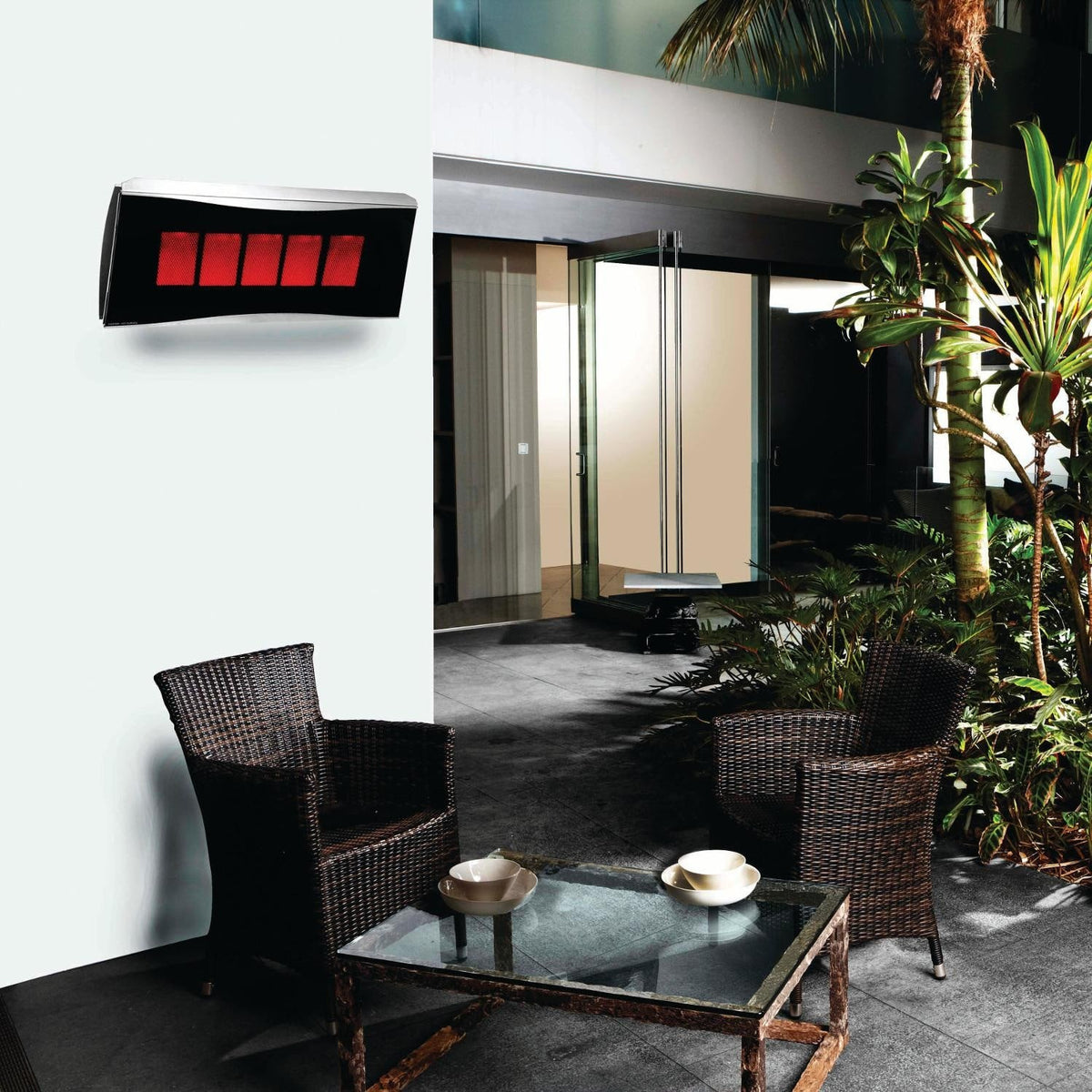

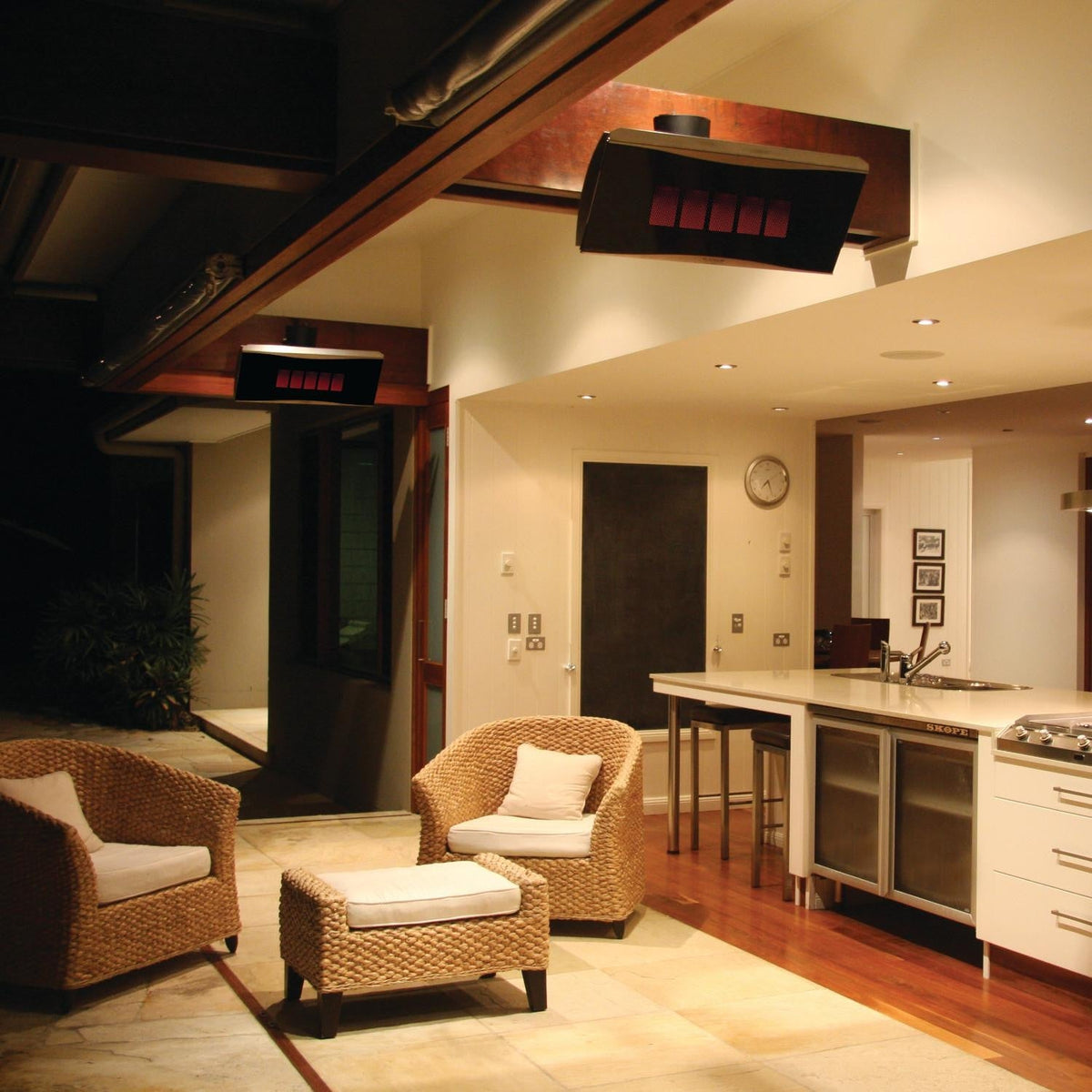

The wall-mount bracket is included, and the pivot bracket lets you aim heat where it is needed. For ceiling installation, add a Bromic Smart-Heat Gas Ceiling Pole Mount. Bromic recommends mounting 8 feet from the floor to the bottom of the heater, and adding a heat deflector if there is less than 42 inches above the heater or it is exposed to the elements. The heater is on/off only, requires a 110V power supply for ignition and must be installed by a licensed gas professional with adequate ventilation. Controls are sold separately: a Bromic Affinity Smart-Heat On/Off Controller or a Manual Wall Switch.
The wall-mount bracket is included, and the pivot bracket lets you aim heat where it is needed. For ceiling installation, add a Bromic Smart-Heat Gas Ceiling Pole Mount. Bromic recommends mounting 8 feet from the floor to the bottom of the heater, and adding a heat deflector if there is less than 42 inches above the heater or it is exposed to the elements. The heater is on/off only, requires a 110V power supply for ignition and must be installed by a licensed gas professional with adequate ventilation. Controls are sold separately: a Bromic Affinity Smart-Heat On/Off Controller or a Manual Wall Switch.
Features
- 39,800 BTU radiant heat for areas up to 215 square feet

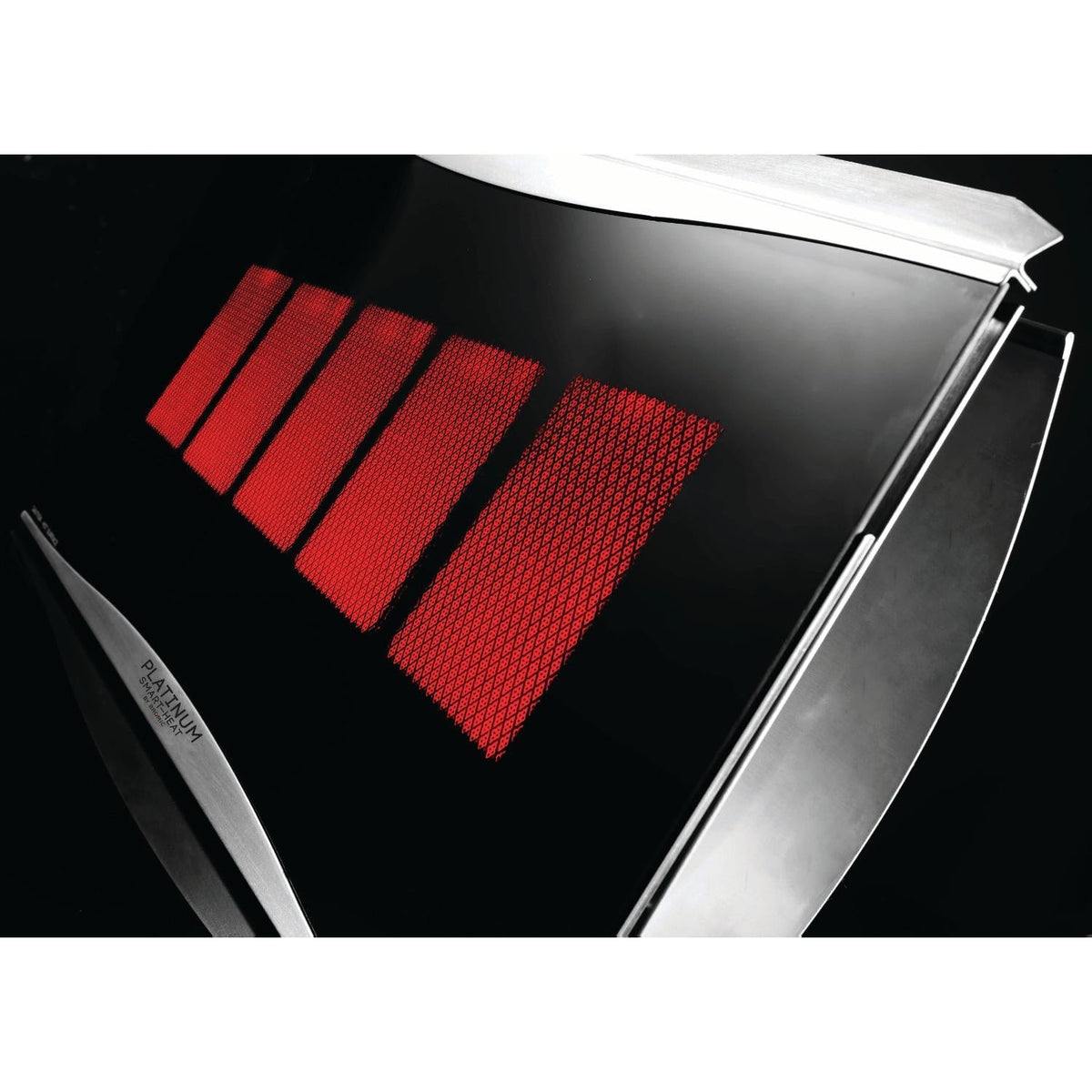

- Signature tinted ceramic-glass screen with subtle red glow
- Patented wind resistance up to 12 mph
- Patented direct ignition with no pilot light
- Automatic re-ignition with flame-failure safety shut-off
- Pivot bracket for directional heat
- Wall bracket included; ceiling poles and heat deflectors sold separately
- Compatible with Affinity On/Off Controllers and Manual Wall Switch (sold separately)
- Available in natural gas and propane
Specifications
Manufacturer Bromic Heating
Model Number (Natural Gas) BH0110003-1
Model Number (Propane) BH0110004-1
Series Platinum Smart-Heat Gas 500
Fuel Type Natural Gas / Propane
BTU Output 39,800
Heat Area 215 Sq. Ft.
Wind Resistance Up to 12 mph
Electrical Connection 110V / 2A
Minimum Floor Clearance 96"
Style Wall / Ceiling Mount
Included Wall Bracket
Construction Stainless Steel, Fully Sealed
Screen Tinted Ceramic Glass
Finish Black / Stainless
Ignition Direct Electronic Ignition
Control Options Affinity On/Off / Manual Wall Switch (sold separately)
Certification Intertek 4009079
Warranty 2 Years (excludes hoses and igniters)
Dimensions
Width 29.76"
Height 14.85"
Depth 15.62"
Weight 44 lbs
